Equipment

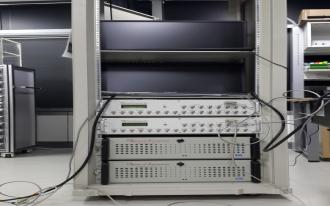

Brain Imager

equipment explanation
Model Imager 3001-Celox
Operating time 09:00 ~ 18:00
Location N센터 86253호
inquiry 정승원
031-290-5917
Reservation

1. 장비설명


본 Imager 3001-Celox 장비는 살아있는 동물의 뇌의 표면을 초고속 1000Hz으로 영상할 수 있는 카메라를 장착한 광학 영상 장비로서, 생체의 intrinsic signal을 측정하거나 뇌혈류영상을 통한 혈류 변화를 실시간으로 측정할 수 있다. 본 장비를 이용하여, 마취상태의 rat과 mouse의 대뇌피질에서의 동맥과 정맥의 혈류량 변화 및 전기자극에 따른 혈류량 변화 이미징을 관찰 하여 뇌 활성과 뇌혈류의 상관관계를 연구할 수 있다



2. 구성 및 성능


• Unsurpassed system for turnkey VSD imaging at rates up to 1 kHz - in-vivo or in-vitro.
• Spatial Resolution of 1312x1082
• Many camera options, for a very wide choice of speeds and binning options.
• Lab interface with 24 BNC connections to your other lab equipment, for total flexibility.
• VDAQ ? episodic data acquisition, as master or as slave to a behavior control system. Online feedback. The gold standard in brain imaging.
• Camera Specifications: Max. Resolution 1312x1082,  Max. Data Rate 306 MB/sec
• Frame Rates and Resolutions: 1000 Hz 544x244 ~ 100 Hz 1312x1082


3. 비품번호


• 7-2013-1588-1 / 서민아

• 7-2013-1589-1 / 서민아
