Human MRI

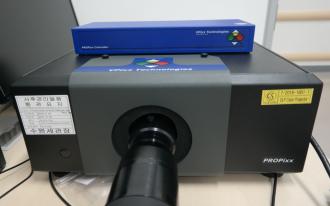

High freqeuncy, high resolution projector for behavior

equipment explanation
Model propixx
Operating time 09:00 ~ 18:00
Location N센터 86139호
inquiry 탁경진
031-299-4406
kj.tark@gmail.com
Reservation

1. 장비설명


본 장비는 고해상도, 고주사율 프로젝터로서 MRI를 사용하여 수행하는 뇌기능 연구시 행동실험 프로그램과 픽셀 변화가 정확하게 싱크되도록 하여 정확한 시간에 시각 자극 제시를 가능하게 함.


2. 구성 및 성능


• PROPixx Lite: Projector and lite data acquisition system (500 HZ  최대 1440 HZ, 1920 x     1080 resolution)
• Super long-throw lens, throw ratio of 6.3  11.0: 1
• Dual-link DVI cable과 booster, active USB cable
• 3D circular polarizing filter와 3D 입체 영상용 안경, 3D screen
• Display resolution: 1920(H) x 1080(V) pixels
• Display type: Texas Instruments DMD 0.95”
• Aspect ratio: 16×9
• Illumination system: RGB LED
• Contrast ratio: 2 000:1
• Lamp life: 60 000 hours via solid state illumination
• Up to 12 bits of resolution on each of the RGB channels
• Up to 500 Hz refresh rate (RGB color)
• Up to 1440 Hz refresh rate (Greyscale)


3. 비품번호


• 7-2016-1661-1 / 심원목
